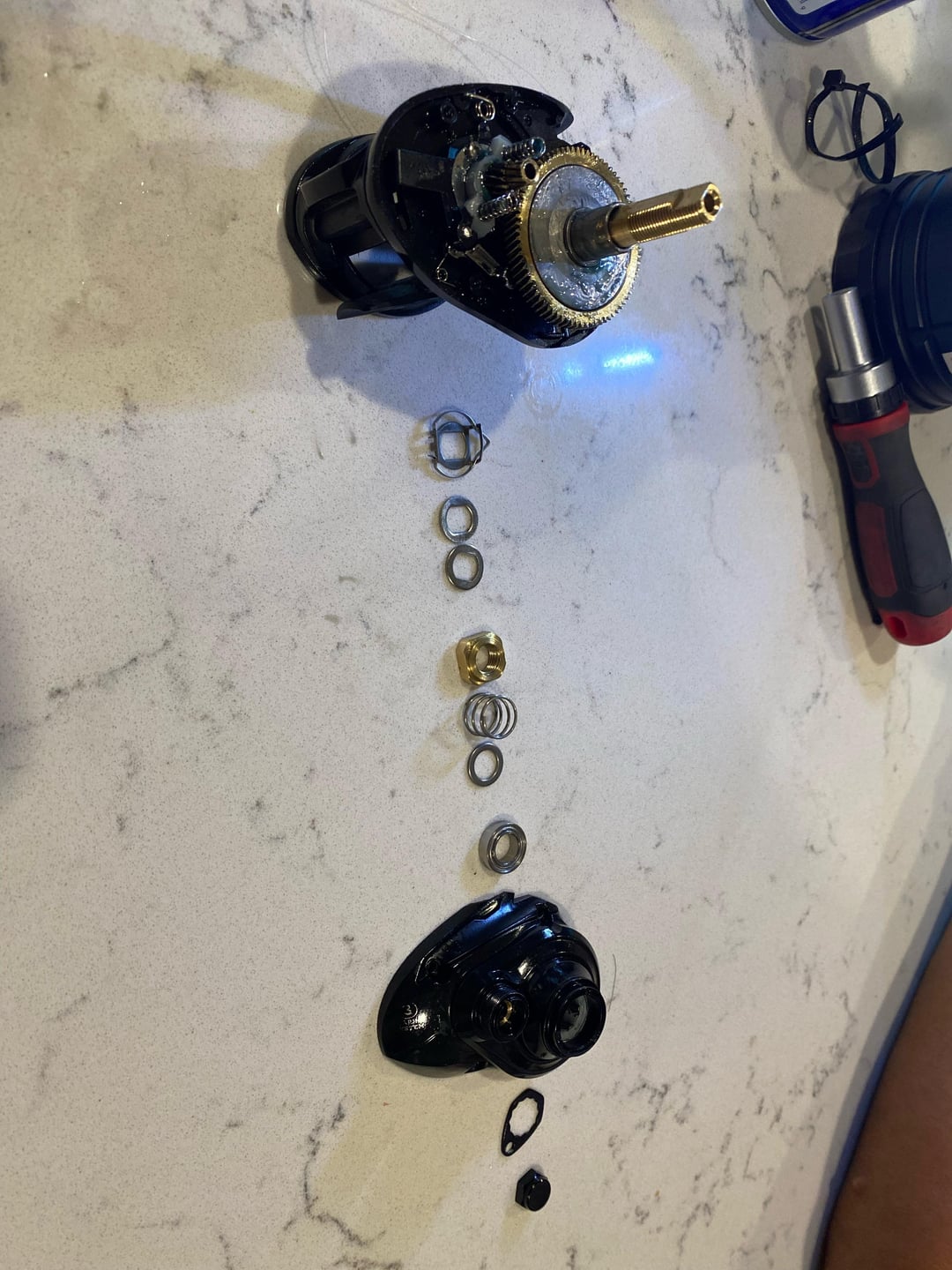

disassembled it to put spool oil on it but forgot how to put everything back someone help me how to put it all back in order
Posted by MasterRest3012
4 Comments
MasterRest3012 on
the reel is a gx2lp with a 3 bearing system 12lb mono 30 braid gear ratio 6 4 1
Aware_Operation8803 on
Try to find the schematics for it on the website, thats how I was able to put mine back together
jbmxr on
Side plate
Bearing
Flat washer with round inner hole
Drag clicker
Two spring washers, facing opposite so they’re making a gap between them
One flat washer with the rectangle hole
Brass nut
Spring
Star drag knob
Other washer with the rectangle hole
Handle
Nut
Locking clip for the handle nut screws into the handle.
Should be right from my memory, if I’m off, look up the reel and you should be able to find a schematic online. They usually come in the box for reels. And if you can’t find the schematic, give us the brand and model and Reddit can help. Good luck!
burner12219 on
Next time take a picture of every part as it comes off
